Introduction to Databases

What types of storage do you know?

What types of storage do you know?

Types of Data

Unstructured

• Data does not conform to a rigid structure.

Semi-structured

• Data conforms to a schema but deviations are possible

Structured

• Schema and types of data are known and encoded in the system.

Unstructured Data

• Free text - ‘🎉What a wonderful day Deployed-Dill!’

• Images

• Audio files

• Can be stored in “object store” - AWS S3

Semi-structured Data

• Stored in document databases, e.g. “MongoDB”

• JSON - JavaScript object notation

Structured Data

• Standardized format with encoded and enforced structure which

  • can be processed efficiently by software and humans alike

  • can be stored and managed more easily

  • lends itself easily to mathematical analysis

• Rows usually represent data points/instances

• Columns usually represent data attributes

• Definable attributes - same attributes for all records

• Relational attributes - common values that link different datasets together

classroom_id	classroom_capacity	classroom_number	bootcamp_id
1	10	100	A
2	15	101	B
3	20	102	C

Databases

Why learn about Databases?

Why?

• Most of (large) data is stored in databases

• An analyst/data scientist needs to be able to connect to a database and access its data to unlock insights.

What?

• Understand the basics of databases

• Be able to connect to a database

How?

• Learn about database types and how they are structured

• Connect to a database and explore its content

What are Databases?

• A systematic collection of data

• Data is either stored on disk or in-memory (faster)

• Support electronic storage and manipulation of data

Notes:

Disk storage –> hard drive of a computer –> large amounts –> persistent –> data retrival slower

   In-Memory RAM --> limited amount --> volatile -->  data retrival faster

   Scenario: E-comerce Website

   disk --> store information of product --> stable in time
                        order history --> insight what more profitable

   in-memory: rapid access/update user shopping card in realtime

Types of Databases

RDBMS: Relational Database Management Systems

• use SQL to query RDBMS

• have a predefined schema

• data is stored in tabular form of columns and rows

• the relationship between data is relational

• Examples: Postgres, MySql, Oracle, SQLite

NoSQL Databases

• don’t use SQL as the primary language

• have no predefined schema

• Examples: Neo4j, MongoDB

RDBMS

• Many different types of databases exist and each uses a different flavour of SQL.

• Their syntax can differ, but the core concepts are the same.

• Some databases will implement a subset of the functionality.

• Some DB will be optimized for speed of read, others for speed of write.

Database Structure

• A database consists of one/multiple schemas

• Schemas consist of tables

• Tables consist of columns and rows

• A column is a variable and has a unique name

• A row is an observation

• Every cell is a single value

Entity-Relationship model

• Data consists of entities of type object, class, person or place

• The property of an entity is described through their attribute(s)

• Relationships describe the relation between entities

• Different types of relationship exist

Entity-Relationship types

• One-to-one (1:1)

• One-to-many (1:n) / Many-to-one (n:1)

• Many-to-many (n:n)

Entity-Relationship types

• One-to-one (1:1)

• One-to-many (1:n) / Many-to-one (n:1)

• Many-to-many (n:n)

Entity-Relationship types

• One-to-one (1:1)

• One-to-many (1:n) / Many-to-one (n:1)

• Many-to-many (n:n)

Entity-Relationship types

• One-to-one (1:1)

• One-to-many (1:n) / Many-to-one (n:1)

• Many-to-many (n:n)

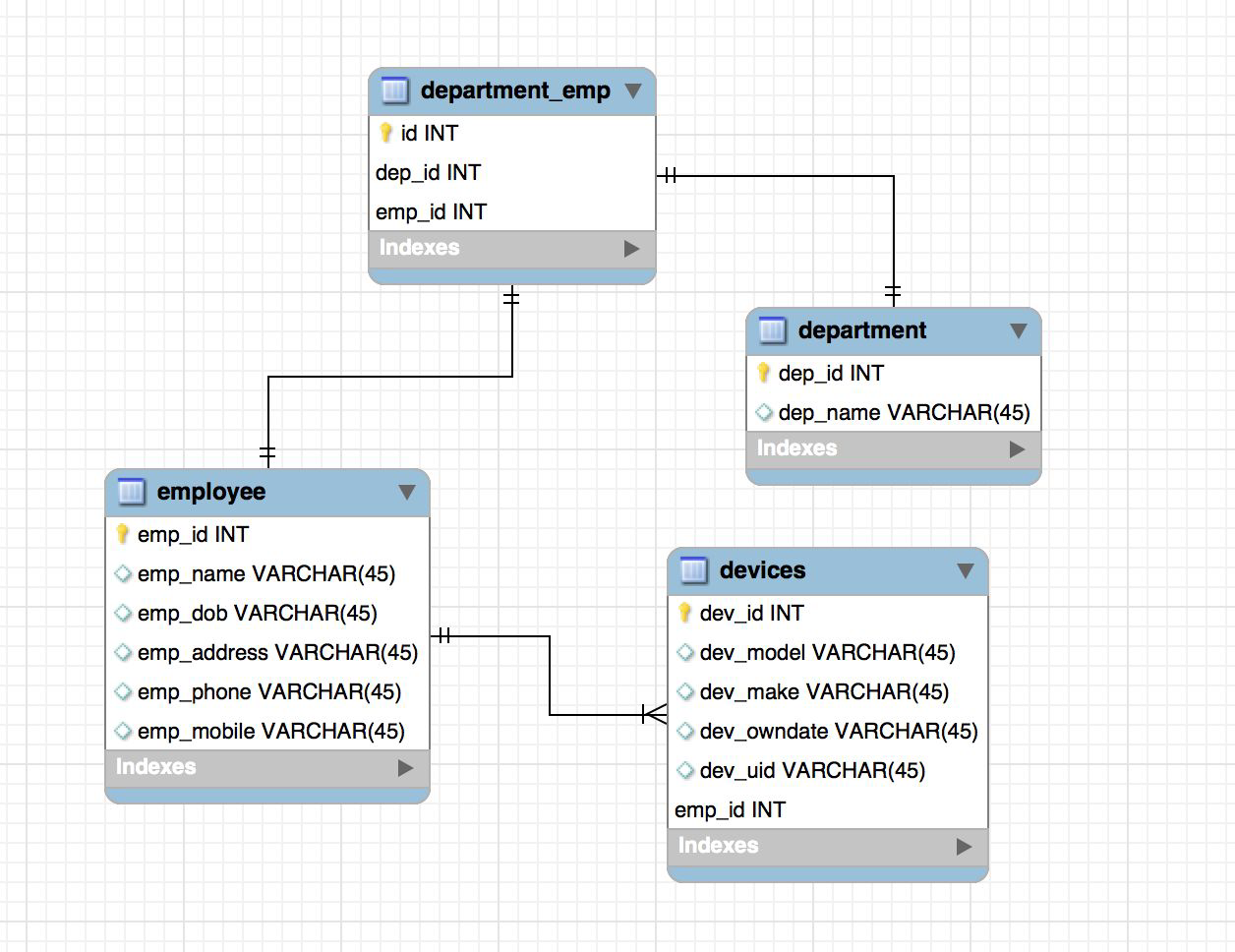

Relational Databases

• Tables are related via primary and foreign keys

• Each table has one primary key that is unique for each record

• A foreign key is a field (or collection of fields) in one table, that refers to the primary key in another table

ERM Exercise

Group Work

1. Split up in 4 groups

2. Open the Miro Board we send in Discord

3. Create between 4 and 8 entities

4. Write down properties (columns) of entities

5. Model dependencies (1:1, 1:m, m:n)

6. Present your final diagram and explain decisions

7. You have 30 Minutes

Topic
Airport
Chocolat Factory
Roller Coaster Park
Restaurant

Connecting to a Database

SQL Client / Database IDE

• IDE = Integrated Development Environment

• Powerful software that can be used to connect to a database and retrieve and visualise data (and more!)

• Local or in the cloud

• Collection of open-source, free and paid software available

Local SQL Clients vs. Cloud SQL Clients

• Local: Installed and run locally on your machine

• Cloud: Deployed in the cloud and accessed via a web-interface

DBeaver

In this course we will use DBeaver

Why?

• Free

• Easy to use

• Works for many different types of databases

• Cross platform (Windows, Linux, Mac OS, Solaris)

Setting up DBeaver

Open DBeaver > Settings > Editors

• Enable upper case: SQL Editor > Formatting > Keyword Case > Set to: Upper

• Add line numbers: Text Editors > Show line numbers > Tick box

Connect to a PostgreSQL database

1. Click on “New Database Connection”

2. Search for and select PostgreSQL

3. Enter the connection details below

Host: ds-sql-playground.c8g8r1deus2v.eu-central-1.rds.amazonaws.com
Port: 5432
Database: postgres
Username Will be posted in Slack/Zoom Chat
Password Will be posted in Slack/Zoom Chat

Exploring the database

Find the database connection in your “Database Navigator” pane on the left

Expand it to postgres > postgres > Schemas > introduction > Tables

Check out the introduction’s tables and answer the following questions:

1. What happens if you double click on a table?

2. What is the first and last entry listed in the records table?

3. What data type is the column record_date in the records table?
